Industrial grade Japanese merry imported universal wrench, ratchet spanner, impact wrench YL

Main parameter

Product brand: MERRY, Japan

Tool Name: a universal wrench

Origin: made in Japan


Data download:

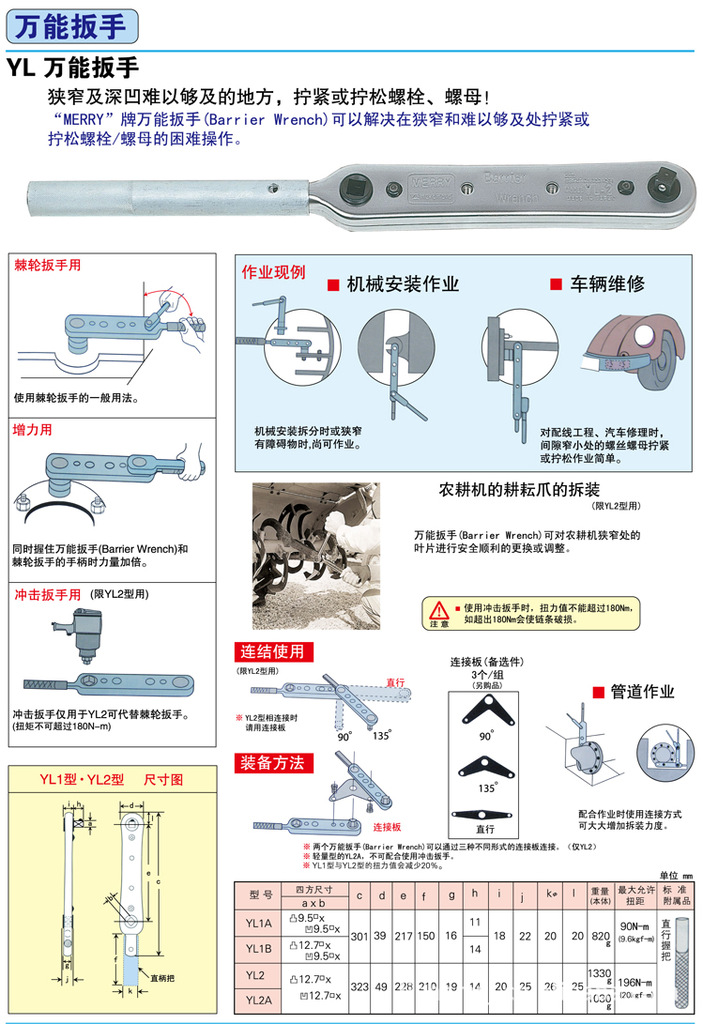

Product introduction

Where the universal wrench is narrow and deep enough, it is necessary to tighten or unscrew the bolts.

The MERRY universal wrench can solve the difficult operation of tightening or loosening bolts / nuts in narrow and difficult places.

The ratchet spanner uses the general usage of ratchet spanner to increase the strength when using the handle of the universal spanner and ratchet wrench at the same time.

The impact wrench is only used for YL2 instead of ratchet wrench torque less than 180N-m.

When the mechanical installation work is broken or obstructing, it can still be operated. When the vehicle maintenance team works in the repair of the car,

It is easy to tighten or loosen the screw nut in narrow clearance.

The blades of the narrow blades of the farming machine can be safely or smoothly replaced or adjusted. Limit Y2 type

When using the impact wrench, the torque value should not exceed 180Nm. If more than 180Nm, the chain will be damaged.

The connection mode can greatly increase the strength of dismantling and assembling.

The two universal wrench can be connected by three different types of connecting plates.

Light weight YL2A, can not match the impact wrench.

The torque value of YL1 and YL2 will be reduced by 20%

型号

四方尺寸

C

D

EFGHIJKL

重量G

最大扭矩标准
YL1A

凸9.5

凹9.5

301



39



217



150



16

11



18



22



20



20



820


90N-m

9.6kgf-m





YL1B

凸12.5

凹9.5

14

YL2



凹凸17


323


49


228



210


19


14


20


25


26


25


1330

196N-m20kg

f-m

YL2A1030
