Product introduction

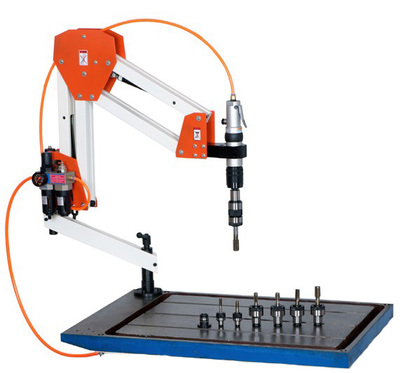

Taiwan AEROMAX Pneumatic Tapping Machine/Pneumatic Tapping Machine..
Professional products, compressed air driven, safe, fast and efficient.
Small air pressure and air volume, large torque output.
The tap collet is equipped with overload protection device,
so the tap damage is less and the screw thread accuracy is high.
The operation is simple and light, and no operator can operate it skillfully.
The machining cost is much lower than that of CNC machining or milling machine with tap.
Fast positioning and high cutting speed, increase production.
Through hole or blind hole, tap will not break.
| Tapping ability: M6- M24 Space speed: 90 or 250 rpm Working radius: 1900MM Tapping direction: vertical head Air pressure: 6.2 Bar |
| Random Annex: 1. Taiwanese AEROMAX original tapping machine motor 2. High Precision Balancing Bracket 3. Taiwanese THB Pneumatic Duplex 4.Vertical head device 5. Tapping chuck (6 standard) |
Suitable materials: aluminium, copper, A3 steel, 45 steel, pig iron, stainless steel and other metal materials
