Product introduction

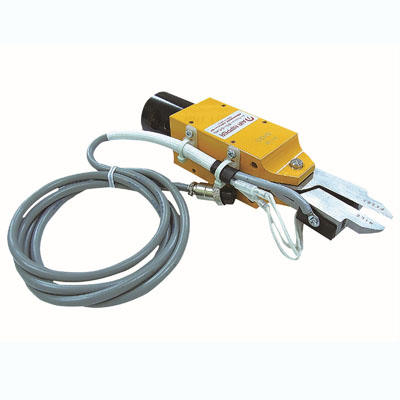

AH20 Pneumatic Clamper Angle Air Heating Clamper
Use heater to heat knife point to cut off, suitable for cutting off
Hard resins, acrylic resins and other easily fragmented resins.
The resin cutting speed can be adjusted by air flow nozzle
| Model | AH20 |
| Air consumption | 262 |
| Weight g | 505 |
| 切削能力 | 6.0mm |

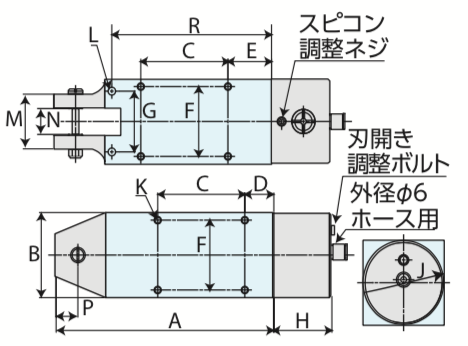

| Dimensions mm | ||||||||||||||
| A | B | C | D | E | F | G | H | J | K | L | M | N | P | R |
| 109 | 45 | 40 | 19 | 24 | 36 | 30 | 40 | 44 | M4D8 | 5.3 | 26 | 12 | 9 | 81 |
| 150 | 56 | 60 | 20 | 30 | 46 | 40 | 40 | 55 | M5D11 | 5.3 | 36 | 17 | 15 | 110 |
