Product introduction
AH30 Pneumatic Clamp Angle Air Heating Clamp
Use heater to heat knife point to cut off, suitable for cutting off
Hard resins, acrylic resins and other easily fragmented resins.
The resin cutting speed can be adjusted by air flow nozzle
| Model | AH30 |
| Air consumption | 621 |
| Weight g | 930 |
| Cutting ability | 7.0mm |

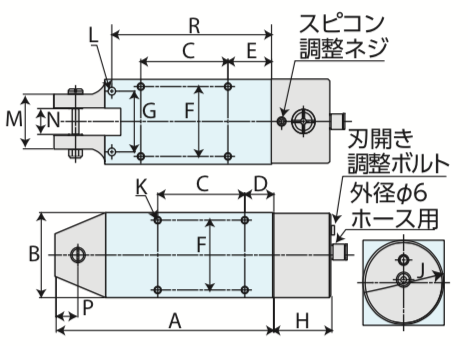

| Dimensions mm | ||||||||||||||
| A | B | C | D | E | F | G | H | J | K | L | M | N | P | R |
| 109 | 45 | 40 | 19 | 24 | 36 | 30 | 40 | 44 | M4D8 | 5.3 | 26 | 12 | 9 | 81 |
| 150 | 56 | 60 | 20 | 30 | 46 | 40 | 40 | 55 | M5D11 | 5.3 | 36 | 17 | 15 | 110 |
