Product introduction

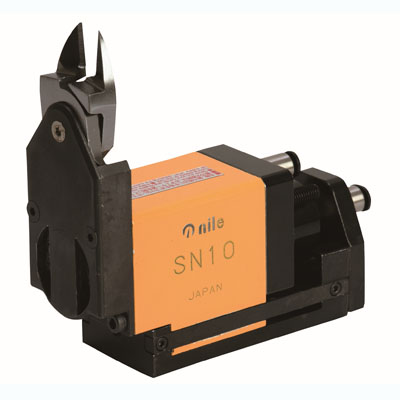

SN Pneumatic Scissors Sliding Nozzle Cutting, Mechanical Installation
The base is stable and stable with high shearing accuracy. The cutting capacity varies from 1.5 to 5 mm depending on the body.
Cutting of all kinds of materials, 360 degrees
| Model | Weight G | Air consumption | Power N | pressure(MPa) |
| SN1 | 140 | 16 | 312 | 0.5 |
| SN2 | 160 | 21 | 429 | 0.5 |
| SN3 | 170 | 24 | 613 | 0.5 |
| SN5 | 220 | 47 | 1,013 | 0.5 |
| SN10 | 300 | 60 | 1,254 | 0.5 |
| SN20 | 505 | 153 | 1,671 | 0.5 |
| Dimensions mm | |||||||||||
| A | B | C | D | M | N | P | R | S | T | U | W |
| 61 | 16.5 | 80 | 65 | - | 30 | 20 | M4 | - | - | - | - |
| 61 | 19 | 80 | 65 | - | 30 | 20 | M4 | - | - | - | - |
| 59 | 23 | 79.6 | 65 | 12 | 37 | 25 | M4 | M4D5 | 15 | 23 | M4 |
| 63 | 28 | 83.6 | 69 | 14 | 40 | 26 | M4 | M4D6 | 20 | 24 | M4 |
| 70 | 33 | 91.6 | 75 | 18 | 45 | 27 | M4 | M4D6 | 25 | 29 | M4 |
| 82 | 42 | 110 | 90 | 22 | 58 | 28 | M4 | M4D7 | 30 | 32 | M5 |
