Product introduction

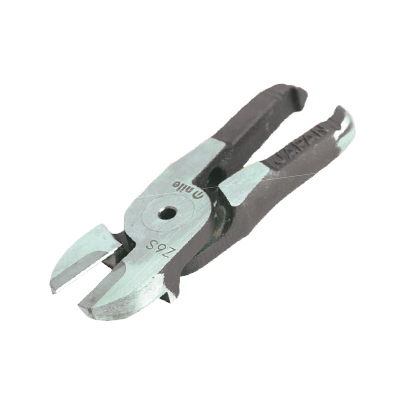

Z-S type air scissors head is made of special alloy steel, with positive and negative rotation knives.
It can realize synchronization of shearing and is suitable for hard wire material.
The cutting force is smooth and smooth. It is widely used.

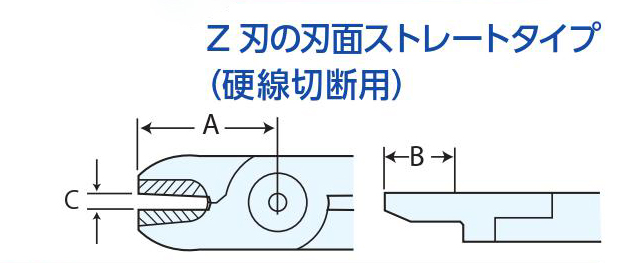

| Model | size（mm） | Section of blade | ||
| A | B | C | Single blade | |
| Z20S | 24.0 | 11.0 | 2.5 | Single blade |
| Z2S | 24.0 | 11.0 | 3.0 | Single blade |
| ZT7S | 27.0 | 11.0 | 3.5 | Single blade |
| Z4S | 27.0 | 11.0 | 5.0 | Standard |
| Z6AS | 34.0 | 16.0 | 6.0 | Standard |
| Z6JS | 34.0 | 16.0 | 5.0 | Standard |
| Z6S | 34.0 | 16.0 | 7.0 | Standard |
| ZS7PS | 43.0 | 17.0 | 7.0 | Standard |
| Z8PS | 40.0 | 20.0 | 7.0 | Standard |
| Z120S | 40.0 | 17.0 | 7.0 | Standard |
