Product introduction
FNP3C type air scissors can be matched with SNP10 special alloy steel for air scissors.

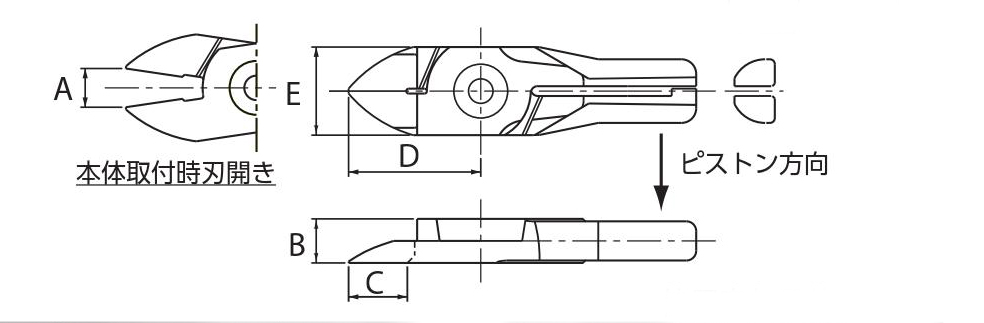

Model | blade | cut off | Dimensions mm | ||||||||
mm | A | B | C | D | E | F | G | H | I | ||
SNP1 | FNP30C | 1.0 | 4 | 7 | 11 | 35 | 12 | M3 | 12 | 8 | 20 |
SNP2 | FNP10C | 1.5 | 4.2 | 7 | 11 | 35 | 14 | M3 | 12 | 8 | 20 |
SNP3 | FNP10C | 1.5 | 5.2 | 7 | 11 | 35 | 14 | M3 | 12 | 8 | 20 |
SNP5 | FNP1C | 2.5 | 8.6 | 7 | 14 | 37 | 16 | M3 | 12.2 | 7.2 | 22 |
SNP10 | FNP3C | 3.0 | 9.8 | 9 | 13 | 35 | 18 | M3 | 13.2 | 8.2 | 20 |
SNP20 | FNP5C | 4.0 | 10 | 12 | 18 | 42 | 22 | M3 | 16 | 11 | 27 |
