产品介绍

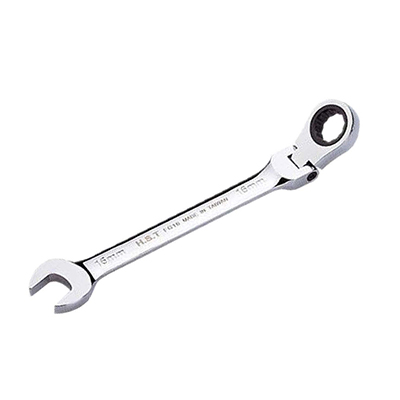

棘轮新增可转头设计,梅花端可在180度范围。
内任意转动,适应更复杂的适用场所。即可扭转螺栓,强劲硬度,
经表面防锈处理,不易生锈。
型号 | 规格 | 长度 | 盒 | 净重KG | 毛重KG | |
FG06 | 6mm | 1/4 | 140 | 10/200 | 7.6 | 8.6 |
FG07 | 7mm | 140 | 10/200 | 8 | 9 | |
FG08 | 8mm | 1/16 | 137 | 10/200 | 12 | 13 |
FG09 | 9mm | 138 | 10/200 | 13 | 14 | |
FG10 | 10mm | 3/8 | 148 | 10/200 | 15.7 | 16.7 |
FG11 | 11mm | 7/16 | 158 | 10/200 | 18 | 19 |
FG12 | 12mm | 165 | 10/200 | 21.5 | 22.5 | |
FG13 | 13mm | 1/2 | 170 | 10/100 | 12.5 | 13.5 |
FG14 | 14mm | 9/16 | 184 | 10/100 | 14.5 | 15.5 |
FG15 | 15mm | 198 | 10/100 | 17 | 18 | |
FG16 | 16mm | 5/8 | 208 | 10/100 | 18 | 19 |
FG17 | 17mm | 11/16 | 217 | 10/100 | 22 | 23 |
FG18 | 18mm | 228 | 10/60 | 15.5 | 16.5 | |
FG19 | 19mm | 3/4 | 239 | 10/60 | 17.6 | 18.6 |
FG21 | 21mm | 13/16 | 313 | 5/50 | 21.8 | 22.8 |
FG22 | 22mm | 7/8 | 313 | 5/50 | 21.7 | 22.7 |
FG23 | 23mm | 5/50 | 27.8 | 28.8 | ||
FG24 | 24mm | 15/16 | 325 | 5/50 | 27.8 | 28.8 |
FG25 | 25mm | 1 | 325 | 5/50 | 27.3 | 28.3 |
FG26 | 26mm | 320 | 10/50 | 27.3 | 28.3 |
