Product introduction

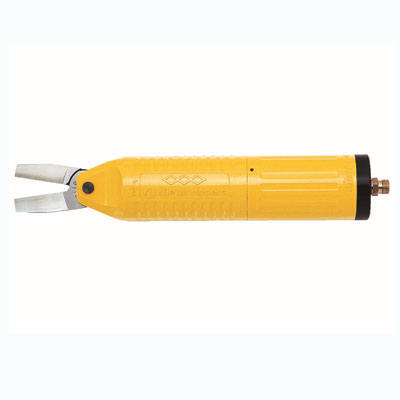

MP-M pneumatic scissors mechanical mounting type without joystick (supercharger connection type)
When MR-M type is used, when pressure is insufficient, when pressure is limited.
It belongs to the customized replacement blade, when the pressure point is far from the fulcrum.
When the pressure is insufficient due to the regulation of air pressure
| Model | Total length | Weight g | Pinch size | Air consumption | power | pressure |
| MP3M | 162 | 110 | 20mm | 48 | 1,090 | 0.3~0.4 |
| MP5M | 134 | 170 | 30 | 68 | 1,234 | 0.3~0.4 |
| MP10M | 176.5 | 270 | 36 | 171 | 2,099 | 0.3~0.4 |
| MP25M | 170 | 450 | 45 | 405 | 2,359 | 0.5~0.6 |
| MP25AM | 208 | 480 | 45 | 459 | 5,373 | 0.4~0.5 |
| MP250M | 216 | 510 | 45 | 624 | 6,071 | 0.5~0.6 |
| MP35AM | 249 | 790 | 56 | 1,146 | 10,118 | 0.5~0.6 |
| MP55AM | 348 | 2,000 | 75 | 2,569 | 23,026 | 0.5~0.6 |
